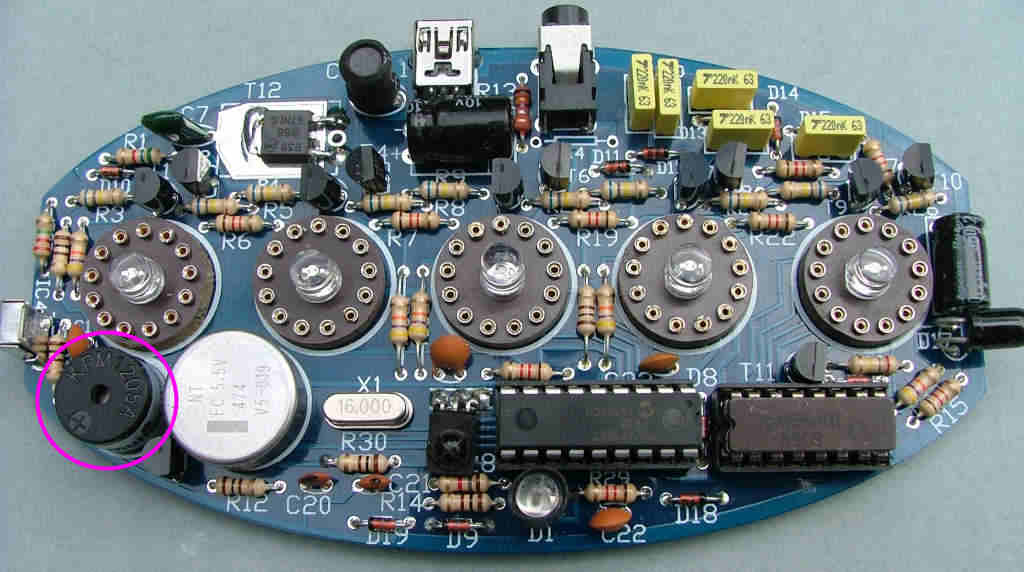

We've almost finished with bag 1 for now - just the buzzer LS1 left to fit. The '+' marking faces to the top right as marked on the PCB, not the left as in the picture.
PCB assembly - BAG1
